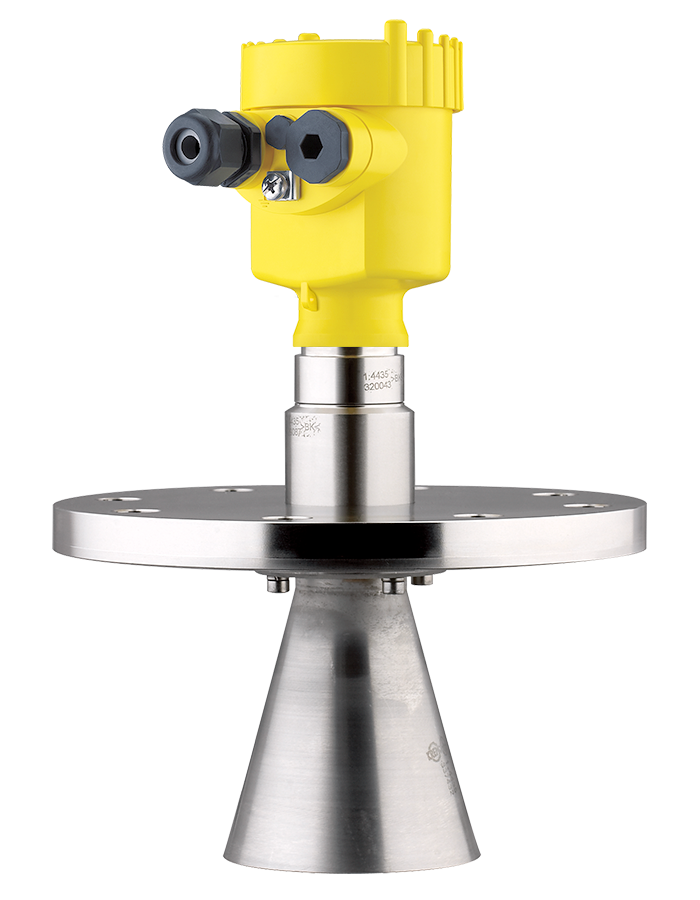

VEGAPULS 66
Radar sensor for continuous level measurement of liquids
Level measurement of liquids – even with strongly agitated media
- High plant availability, because wear and maintenance-free
- Maintenance-free operation through non-contact measuring principle
- Reliable measurement independent of process conditions
Measuring range – Distance
35 m
Measuring range – Pressure
–
Process temperature
-60 … 400 °C
Process pressure
-1 … 160 bar
Accuracy
± 8 mm
Version
for separate horn antenna
with horn antenna ø 48 mm
with horn antenna ø 75 mm
with horn antenna ø 95 mm
with ø 52 mm standpipe
for separate standpipe
with horn antenna ø 140 mm enamelled
with horn antenna ø 145 mm
with horn antenna ø 160 mm enamelled
with horn antenna ø 195 mm
with horn antenna ø 240 mm
with horn antenna ø 48 mm
with horn antenna ø 75 mm
with horn antenna ø 95 mm
with ø 52 mm standpipe
for separate standpipe
with horn antenna ø 140 mm enamelled
with horn antenna ø 145 mm
with horn antenna ø 160 mm enamelled
with horn antenna ø 195 mm
with horn antenna ø 240 mm
Materials, wetted parts
316L
Alloy C22 (2.4602)
Enamel
Alloy C276 (2.4819)
316
1.4435
Alloy C22 (2.4602)
Enamel
Alloy C276 (2.4819)
316
1.4435
Flange connection
≥ DN50, ≥ 2″
Seal material
EPDM
FKM
FFKM
graphit and ceramic
PTFE
Silicone FEP coated
FKM
FFKM
graphit and ceramic
PTFE
Silicone FEP coated
Housing material
Plastic
Aluminium
StSt (precision casting)
StSt (electropolished)
Aluminium
StSt (precision casting)
StSt (electropolished)
Protection rating
IP66/IP68 (0.2 bar)
IP66/IP67
IP66/IP68 (1 bar)
IP66/IP67
IP66/IP68 (1 bar)
Output
Profibus PA
Foundation Fieldbus
Two-wire 4 … 20 mA/HART®
Modbus
Four-wire 4 … 20 mA/HART®
Foundation Fieldbus
Two-wire 4 … 20 mA/HART®
Modbus
Four-wire 4 … 20 mA/HART®
Ambient temperature
-40 … 80 °C
